WebENTRA R300 Secure Encryption (SE) Readers

A family of secure encryption NFC readers capable of handling demanding contactless smartcard applications.

Clear
Enquiry
R381 1
R381 1
R381 1
R385 6
r303 1

The WebENTRA R300 series is a family of secure
encryption NFC readers that can handle demanding
contactless smartcard applications. With built-in
cryptographic hardware, this family of readers can
support AES128 and 3DES encryption algorithms.
Encryption keys may be stored in Secure Access Modules
or in the reader.

The R385ST model comes with touch, color TFT LCD. PIN
entry can made using a scrambled keypad for enhanced
security.

Key Features

  • Touch color LCD
  • Scrambled keypad for PIN entry
  • AES128, 3DES and CMAC cryptography
  • Support up to 2 SAM
  • Configurable scrolling message from
    IBSS.web
  • Configurable time-based greeting
  • Built-in tamper alarm
  • Function keys to control inputs and outputs
  • Option for secure encryption with and
    without SAM
  • OSDP v2 for highly secure transmission
  • Time clock mode for integration with 3rd
    party attendance system
  • PIN change at reader
  • Card holder name display
Specifications R385STSE-SAM/
R385STSE-SID
R381STSE-SAM/
R381STSE-SID
R385STSE R303STSE  R301STSE
Description SE Reader with
Touch Screen Color
LCD and SAM for
SkeyMa/SE Reader
with Touch Screen
Color LCD and SAM
for SSID/PS21
SE Reader only with
SAM for SkeyMa/SE
Reader only with
SAM for SSID/PS21
SE Reader with Touch Screen Color LCD SE Reader with Touch Sensing Keypad SE Reader Only
Contactless Technology NFC, ISO 14443 Type A/B and MIFARE Desfire
LCD TFT Color LCD, 240×320 with Touch Capacitive TFT Color LCD, 240×320 with Touch Capacitive
Keypad Capacitive Touchscreen Capacitive Touchscreen Touch Capacitive Keypad
Scrambled PIN Yes Yes
Encryption SAM Support Up to 2 x SAM in 2FF/Mini SIM Up to 2 x SAM in 2FF/Mini SIM No No No
RS485 OSDP(19200bps,
R385SE-SAM only)
& ADNET
OSDP(19200bps,
R381SE-SAM only)
& ADNET
OSDP(19200bps) &
ADNET
ADNET ADNET
Encryption Key in Reader Yes (R385SE-SAM
only)
Yes (R381SE-SAM
only)
Yes Yes Yes
Wiegand Yes (R385SE-SAM
only)
Yes (R381SE-SAM
only)
Yes Yes Yes
Tamper Switch Yes Yes Yes No No
Audio Feedback Buzzer
Visual Indicator 3 Color LED
Protection IP65
DC Power Supply 12VDC, 0.3A 12VDC, 0.25A 12VDC, 0.3A 12VDC, 0.2A 12VDC, 0.2A
Operating Temperature 0 – 50  °C
Humidity 90%
Dimensions  135 x 76 x 22 mm
Weight 0.5kg   0.3kg
Certifications CE & FCC

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/readers-datasheets/

Model No. Description
R385STSE-SAM WebENTRA SE Reader with Touch Screen Color LCD and SAM for SkeyMa
R385STSE-SID WebENTRA SE Reader with Touch Screen Color LCD and SAM for SSID/PS21

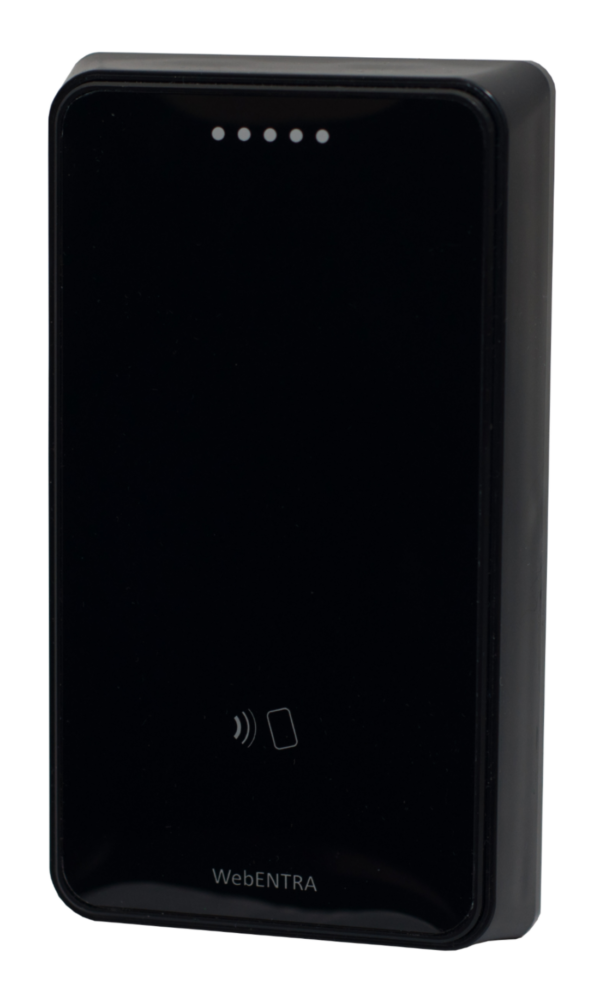

R381STSE-SAM WebENTRA SE Reader Only with SAM for SkeyMa
R381STSE-SID WebENTRA SE Reader Only with SAM for SSID/PS21
R385STSE WebENTRA SE Reader with Touch Screen Color LCD

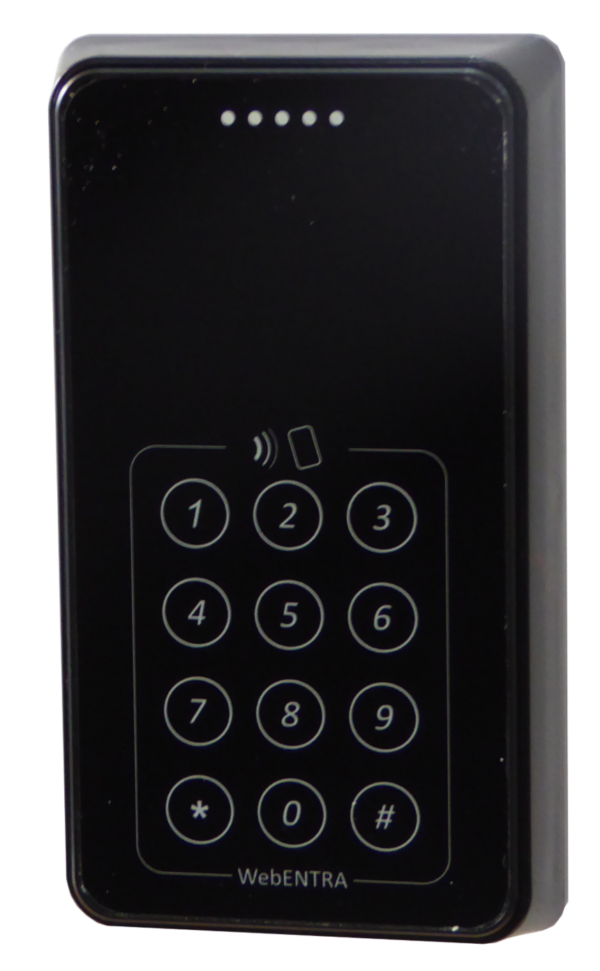

R303STSE WebENTRA SE Reader with Touch Sensing Keypad
R301STSE WebENTRA SE Reader Only
