WebENTRA Compact Series IP Access Controller

Suitable for small and medium offices which it a cost effective controller. Offers in a single package, support for up to 2 doors (or 4 readers) and powered by PoE+.

Clear
Enquiry

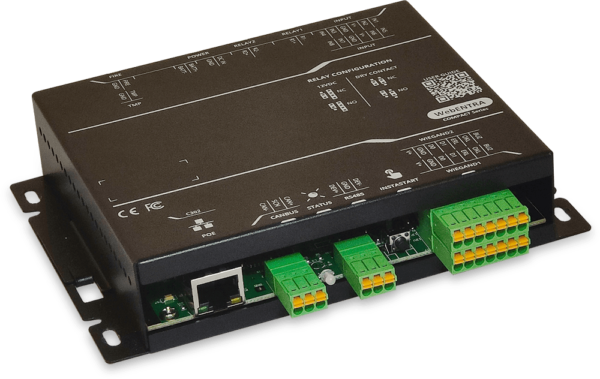

C302
C302

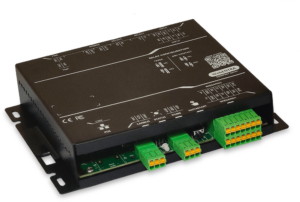

C312

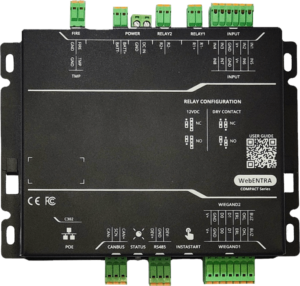

C302 Top View

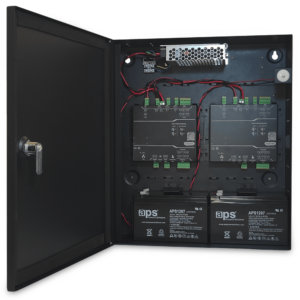

C302K1 with C312

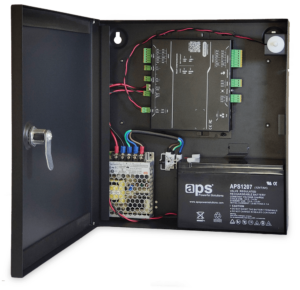

C302G1

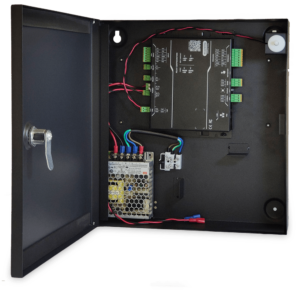

C302G2

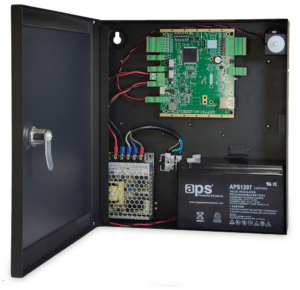

C302PG1

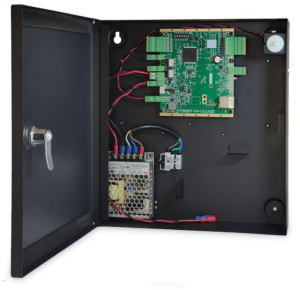

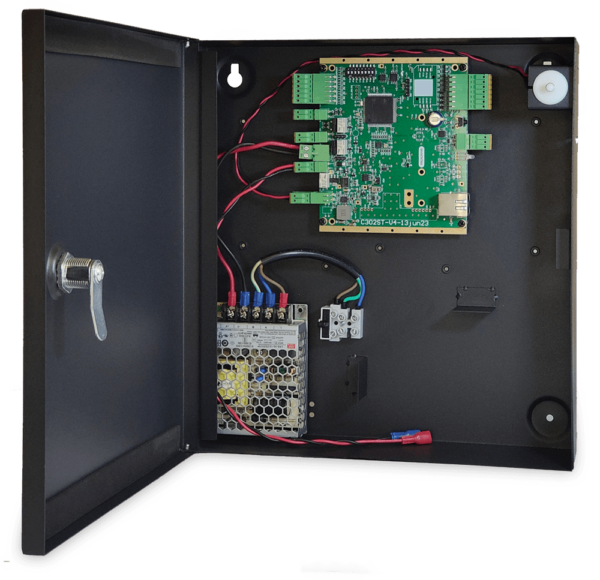

C302PG2

The WebENTRA Compact Series offers a cost-effective, web-based, modular access control solution. The WebENTRA C302ST is a compact controller that supports up to 2 doors (4 readers) and can be fully powered by PoE+. Installation is fuss-free and proposes significant
savings in wiring cost. A single Cat 5/6 cable can be used for both data and power transmission. The WebENTRA C302ST comes complete with I/Os for 2 doors with a capacity for 30,000 cardholders and 75,000 events. Each WebENTRA C302ST controller connects up
to 15 units of the WebENTRA C312ST reader modules via CAN bus, and supports up to a total of 32 doors (or 64 readers).

KEY FEATURES

Effortless Setup:
Enhanced Security:
Flexible Interface Selection:
Extensive Capacity:
Versatile Power Options:
High-Speed Expansion Capability:
Web-Ready Management:
Direct to Cloud:
Seamless Integration with IBSSweb:
Durable and User-friendly:
Specifications
C302
C312
C302P
Ethernet Host Link
100BaseT
100BaseT
CAN Bus
Yes (IP Controller)
Yes (Door Module), Maximum 15 to a IP Controller
No
InstaStart Wizard
Yes
Yes
Power-Over-Ethernet
IEEE802.3af (PoE) or IEEE802.3at (PoE+)
No
Alternate DC Power Input
12-15VDC
12-15VDC
12-15VDC
Battery Charger
                                                    Yes with minimum 14V DC input
RS485 (Device Port)
Up to 4x Readers
Up to 4x Readers
Up to 4x Readers
Wiegand Interface
2
2
2
Alarm Input / Relay Output
8 / 2
8 / 2
8 / 2
Cardholders
20,000
20,000
Event Buffers
50,000
50,000
User Access Groups
1,024
1,024
Holidays
120
120
Weekly Schedules
128
128
Current Consumption
(excluding Lock)
200mA at 12VDC
150mA at 12VDC
200mA at 12VDC
Dimensions
158 x 145 x 40 mm
158 x 145 x 40 mm
130 x 145 x 20 mm
Weight
450g
400g
350g

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/controller-datasheets/

Model No.
Description
C302
WebENTRA Compact 2-Door IP Controller
C312
WebENTRA Compact 2 Door Reader Module
C302P
WebENTRA Compact ECO 2-Door IP Controller
C302G1
WebENTRA Compact C302 Package G1
Includes C302, RS3515, ABT7AH, AET200
C312G1
WebENTRA Compact C312 Package G1
Includes C312, RS3515, ABT7AH, AET200
C302G2
WebENTRA Compact C302 Package G2
Includes C302, RS3515, AET200
C312G2
WebENTRA Compact C312 Package G2
Includes C312, RS3515, AET200
C302K1
WebENTRA Compact C302 Package K1
Includes C302, RS7515, ABT7AH, AET300
C312K1
WebENTRA Compact C312 Package K1
Includes C312, RS7515, ABT7AH, AET300
C302K2
WebENTRA Compact C302 Package K2
Includes C302, RS7515, AET300
C312K2
WebENTRA Compact C312 Package K2
Includes C312, RS7515, AET300
C302PG1
WebENTRA Compact ECO C302P Package G1
Includes C302P, RS3515, ABT7AH, AET200
Accessories
RS3515
Power Supply 15VDC 2.4A Output (100 to 250VAC input)
RS7515
Power Supply 15VDC 5A Output (100 to 250VAC input)
ABT7AH 7AH 12VDC Lead Acid Battery
ABT12AH 12AH 12VDC Lead Acid Battery
AET200 AET200 Wall Mount Metal Enclosure (300x280x70mm)
AET300
AET300 Wall Mount Metal Enclosure (350x400x120mm)
