WebENTRA Professional Series IP Access Controller

Suitable for large corporates. The highly resilient IP controller is equipped with failover capability, dual CANbus for interconnecting modules and dual Ethernet host links that eliminates any potential SPOF (single-point-of-failure).

Clear
Enquiry

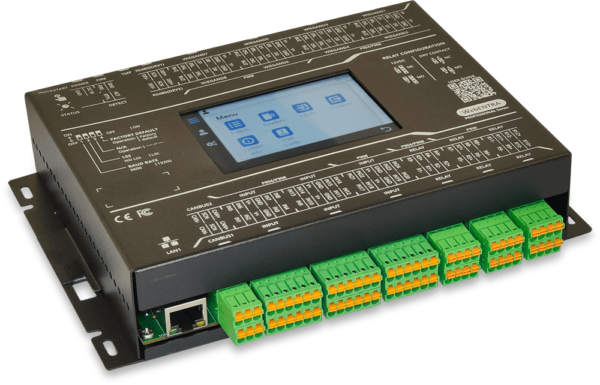

P908 Master Controller
P908 Master Controller

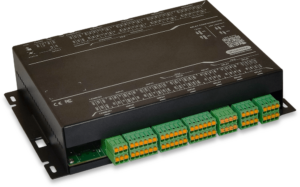

P918 Reader Module

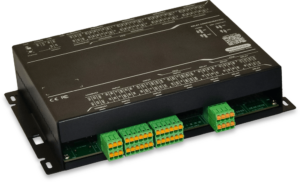

P914 Reader Module

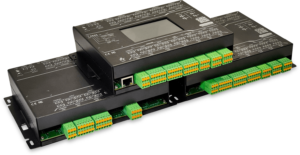

WebENTRA Professional

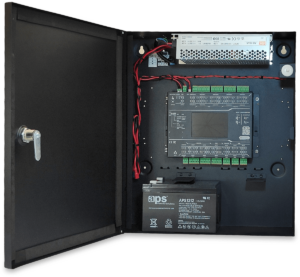

P908K1

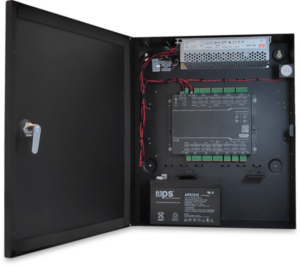

P918K1

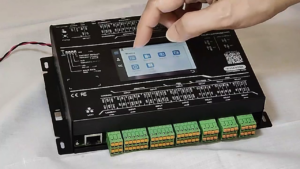

P908 LCD

The WebENTRA Professional is a modular access control product that starts with a 4 or 8 door IP controller. This product family has a highly resilient IP controller module with failover capability, dual CAN bus for interconnecting modules and dual Ethernet host links that eliminates any potential SPOF (single-point-of-failure).

A built-in web browser user interface allows platform independent setup and operation. Any authorized browser log in gives access to online real-time events log, zoom-in floorplans, and a built-in report generator. Alarms can also be acknowledged or reset upon log in. This IP controller comes with a high performance database that supports 150,000 card IDs with a buffer for 1,000,000 events.

The architecture of the WebENTRA Professional series ensure that any system can be easily expanded with optional modules for additional doors and/or IOs to suit any application.

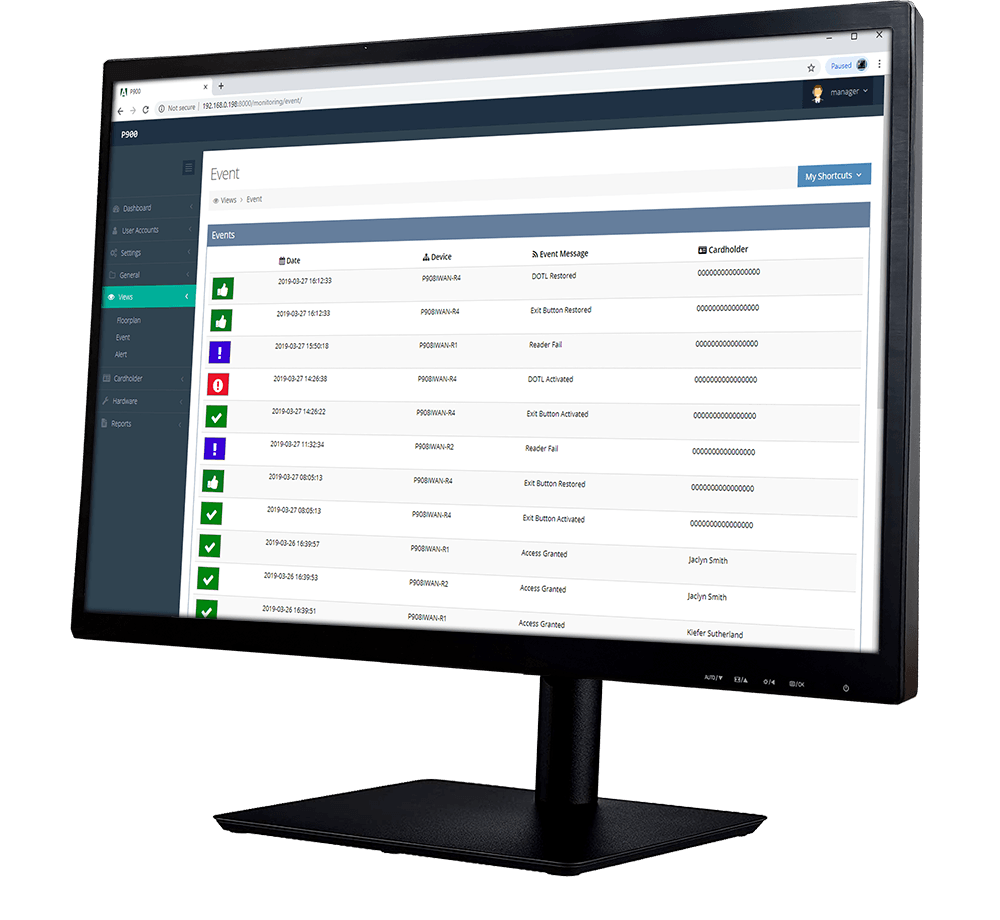

P900 WebENTRA Webserver

Key Features

TLS 1.3 Protocol Support:
Enhance online security and efficiency with TLS 1.3 support.
Seamless User Interface:
Browser-based, featuring floor plans, real-time status, and cross-browser compatibility (Edge, Firefox, Safari, Chrome, and more).

Versatile Access Control:

4/8-Door IP access controller featuring Gigabit Ethernet. Modular design enables expansion for readers, inputs, and relay outputs.

Enhanced Availability:
Failover architecture to prevent Single Points of Failure (SPOFs). Options for dual ethernet, dual CAN bus and dual device ports.
Direct to Cloud:
Allows the P900 controller to navigate through an internet router and connect to a server in the cloud.		Reader Compatibility:
Supports a range of readers, including Wiegand and RS485 (ADNET, OSDP, CLEX).
Programmable Automation:
User programmable options including Event Action and Python Scripting.		Comprehensive Software Integration:
Seamlessly integrates with IBSSweb Enterprise Security Management Software.
User-Friendly Display:
Navikey (Touchscreen LCD) on the controller for easy setup and diagnostic.		SAM Encryption:*
Allow for secret keys to be stored in a secure
media for encryption implementation.
Robust Capacity:
Capable of handling up to 150,000 card IDs and storing 1 million events.

*For custom projects only

Specifications**
P901
P904ST
P908ST
P914ST
P918ST
P920ST
P930ST
Description
WebENTRA PRO Redundant IP Controller
WebENTRA PRO 4-Door IP Controller
WebENTRA PRO 8-Door IP Controller
WebENTRA PRO 4-Door Reader Module
WebENTRA PRO 8-Door Reader Module
WebENTRA PRO Input Module
WebENTRA PRO Output Module
Ethernet Host Link
2x Gigabit (LAN1 built-in, LAN2 Optional)
–
–
–
–
Web Browser
Connections
5
5
5
–
–
–
–
CANBus
 2
Max Door per Module
 0
4
8
4
8
–
–
Max Modules
3x P914/P918; 4x P920/P930
–
–
–
–
Touchscreen LCD
Yes
–
–
–
–
Encryption SAM Support
Yes
–
–
–
–
Supported Protocol – ADNET / OSDP (19200bps) / Clex / Wiegand ADNET / OSDP (19200bps) / Clex / Wiegand ADNET / OSDP (19200bps) / Clex / Wiegand ADNET / OSDP (19200bps) / Clex / Wiegand – –
RS485 (Device)
–
2x RS485 ports, 8 Readers Max (Support ADNET, OSDP & CLEX)
2x RS485 ports, 16 Readers Max (Support ADNET,  OSDP & CLEX)
2x RS485 ports, 8 Readers Max (Support ADNET, OSDP & CLEX)
2x RS485 ports, 16 Readers Max (Support ADNET, OSDP & CLEX)
–
–
Wiegand Ports
–
4
8
4
8
–
–
Alarm Input/ Relay Output
–
16/4
24/12
16/4
24/12
32/8
8/32
Input State
–
LSS disabled: Activate, Deactivate
LSS enabled: Activate, Deactivate, Open Circuit, Short Circuit
Relay Contact Rating
–
12V 2A max
Card IDs
150,000
–
–
–
–
Event Buffers
1,000,000
–
–
–
–
Schedules 128 – – – –
Multi Lift Group 255 – – – –
DC Power Supply
12V, 1A
12V, 0.5A
Max. Current
(excluding locks)
1A
0.5A
Operating
Temperature
0 – 50°C
Humidity
90%
Dimensions
204mm (L) x 165mm (W) x 43mm (H), with connectors
Weight
0.73 Kg
0.67 Kg
Certifications
CE & FCC

**Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/controller-datasheets/

Model No. Description
P901 WebENTRA PRO Redundant IP Controller
– built-in dual Ethernet
– with NAVIKEY
P904ST WebENTRA PRO 4-Door IP Controller
– support 8x Readers with RS485 or 4x Readers with Wiegand
– 16 Inputs and 4 Relays Outputs
– with NAVIKEY
P908ST WebENTRA PRO 8-Door IP Controller
– supports 16x Readers with RS485 or 8x Readers with Wiegand
– 24 Inputs and 12 Relay Outputs
– with NAVIKEY
P914ST WebENTRA PRO 4-Door Reader Module
– supports 8x Readers with RS485 or 4x Readers with Wiegand
– 16 Inputs and 4 Relay Outputs
P918ST WebENTRA PRO 8-Door Reader Module
– supports up to 16x Readers with RS485 or 8x Wiegand Readers
– 24 Inputs and 12 Relay Outputs
P920ST WebENTRA PRO Input Module
– supports 32 Inputs and 8 Relay Outputs
P930ST WebENTRA PRO Output Module
– supports 32 Relay Outputs and 8 Inputs
P901STK1 WebENTRA PRO P901 Package K1
– includes P901, APC-155, ABT12AH, AET300
P904STK1 WebENTRA PRO P904 Package K1
– includes P904ST, APC-155, ABT12AH, AET300
P908STK1 WebENTRA PRO P908 Package K1
– includes P908ST, APC-155, ABT12AH, AET300
P914STK1 WebENTRA PRO P914 Package K1
– includes P914ST, APC-155, ABT12AH, AET300
P918STK1 WebENTRA PRO P918 Package K1
– includes P918ST, APC-155, ABT12AH, AET300
P920STK1 WebENTRA PRO P920 Package K1
– includes P920ST, APC-155, ABT12AH, AET300
P930STK1 WebENTRA PRO P930 Package K1
– includes P930ST, APC-155, ABT12AH, AET300
P904STK2 WebENTRA PRO P904 Package K2
– includes P904ST, APC-155, AET300
P908STK2 WebENTRA PRO P908 Package K2
– includes P908ST, APC-155, AET300
P914STK2 WebENTRA PRO P914 Package K2
– includes P914ST, APC-155, AET300
P918STK2 WebENTRA PRO P918 Package K2
– includes P918ST, APC-155, AET300
P920STK2 WebENTRA PRO P920 Package K2
– includes P920ST, APC-155, AET300
P930STK2 WebENTRA PRO P930 Package K2
– includes P930ST, APC-155, AET300
Accessories
APC-155 10.5A PSU/ Charger 12VDC Output
ABT7AH 7AH 12VDC Lead Acid Battery
ABT12AH 12AH 12VDC Lead Acid Battery
P900ETH2 WebENTRA P900 Ethernet Port 2
AET300 AET300 Wall Mount Metal Enclosure (350x400x120mm)
