WebENTRA Secure Encryption (SE) BLE Mobile Readers

A family of secure encryption NFC mobile access readers with BLE (Bluetooth Low Energy) built-in, making it faster and highly secure.

This product is currently out of stock and unavailable.

Enquiry
R512SEK_R513SEK_R514SEK_wf
R512SEK_R513SEK_R514SEK_wf
R512SE_R513SE_wf
R502SE_wf

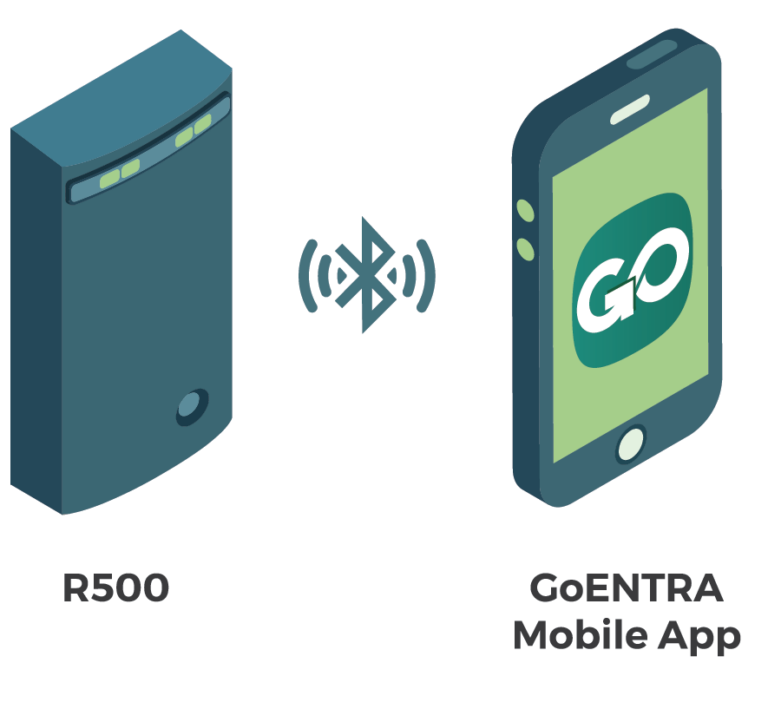

The WebENTRA R500 series is a secure encryption NFC mobile access capable of supporting authentication in mobile devices. Each reader can be configured independently for use in NFC, remote, vicinity or wave modes.

  • Users may use their mobile device to unlock doors

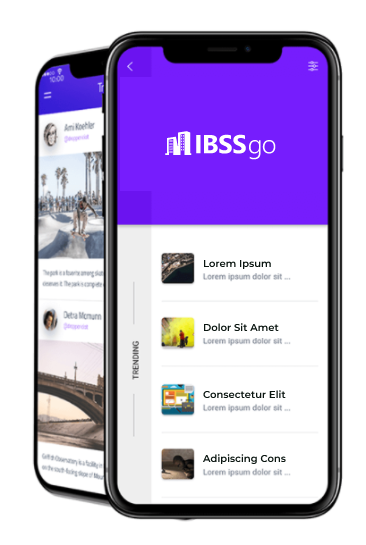

  • System owners have full control over each mobile device using the IBSSgo cloud management system
  • The R500 can be connected to any traditional access control system for easy upgrade.

KEY FEATURES

  • Supports NFC and Bluetooth (BLE) for fast and secure mobile device operation
  • Supports 4 modes of mobile operation (NFC, Wave, Vicinity & Remote)
  • Individually addressable RGB LED with animated pattern for each message
  • Polyphonic sounder
  • Mullion and wall switch mounting types
  • Keypad option available
  • Higher security crypto with tamper detection
  • AES128 encryption
  • RS485 (ADNET & OSDP) and Wiegand interface
  • Optional Ethernet with PoE

MODES OF OPERATION

Near Field Communications (NFC)

  • The NFC mode supports highly secure and intentional operation with the use of contactless smartcards and mobile phones.
    Typical operating range: 5cm

Vicinity

  • The vicinity mode gives users the convenience to unlock a nearby door or barrier from their mobile device by selecting from a list of connected mobile readers.
    Typical operating range: 5m

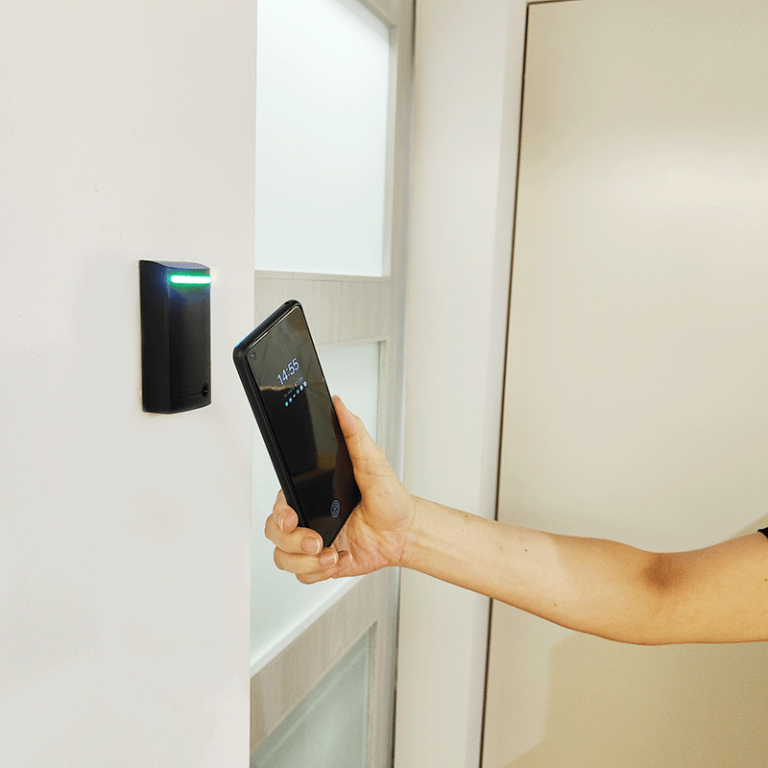

Wave

  • The wave mode allows users to establish a secure connection between a mobile device and nearby reader with a simple wave. Ideal for busy executives.
    Typical operating range: 50cm

Remote

  • The remote mode allows users to unlock a remote door or barrier from their mobile phone, offering convenience without having to be physically present at the remote location.

KEY FEATURES / BENEFITS

NFC and Bluetooth (BLE)

Fast and secure operation with mobile access

NFC and Bluetooth (BLE)

4 Modes of Operation

Supports NFC, Remote, Vicinity & Wave modes

4 Modes of Operation

LED Display

Individually addressable RGB LEDs to customize animated patterns for easy recognition

LED Display

Polyphonic sounder

Customizable tones and loudness

Polyphonic sounder

Crypto CPU

Enhanced security design with anti-tamper features

Crypto CPU

RS485 interface

Supports ADNET and OSDP (coming soon)

RS485 interface

Ethernet

Optional for built-in PoE (Power over Ethernet) support

Ethernet

Form Factor

Comes in mullion, wall switch and keypad

Form Factor
Specifications R502ST/SE R512ST/SE / R513ST/SE R512ST/SEK / R513ST/SEK / R514ST/SEK
Description WebENTRA SE Slim Mobile Reader WebENTRA SE Mobile Reader WebENTRA SE Keypad Mobile Reader
Form Factor Mullion Wall switch  Wall switch with keypad
NFC
Keypad 13.56MHz / ISO14443 Type A, B
NFC Operating Range 20 to 40 mm 20 to 80 mm
Bluetooth
Version / Frequency 5.0 BLE / 2.4GHz
Bluetooth Op Range 0.1 to 10m
Wave Sensor Yes
Interface Ports Wiegand In, Wiegand Out, RS485
Wiegand Formats 26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40
RS485 ADNET, OSDP
Ethernet with PoE No      Optional
LED Display / Sounder 9 x RGB individually addressable / Polyphonic sounder
Crypto CPU Yes
SAM Support No       Yes (Optional)
Dimension (H x W x D)  115 x 50 x 25 mm               115 x 65 x 25 mm
Power Input 12 – 15 VDC, 0.2A
Environment Weatherproof
MODEL NO. DESCRIPTION

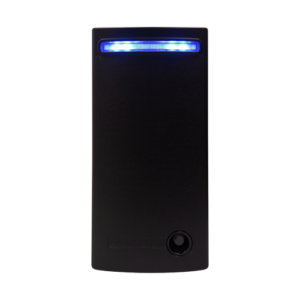

R502SE R502 WebENTRA SE Bluetooth Mobile Reader only

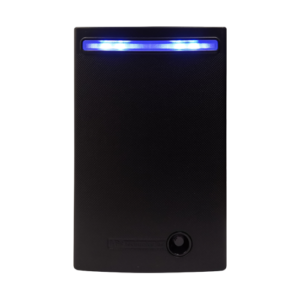

R512SE R512 WebENTRA SE Bluetooth Mobile Reader
R513SE R513 WebENTRA SE Bluetooth Mobile Reader with SAM

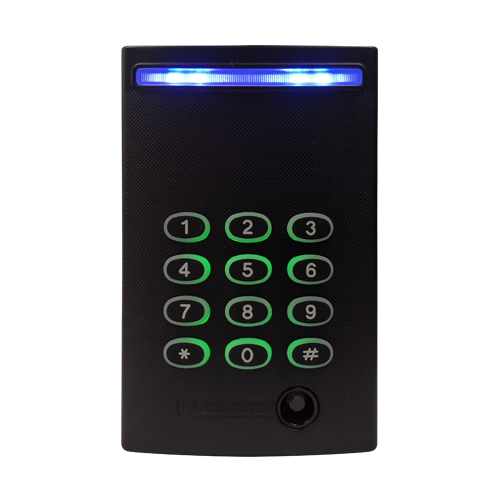

R512SEK R512 WebENTRA SE Bluetooth Mobile Reader with Keypad
R513SEK R513 WebENTRA SE Bluetooth Mobile Reader with Keypad & SAM
R514SEK R514 WebENTRA SE Bluetooth Mobile Reader with Keypad, SAM & POE
