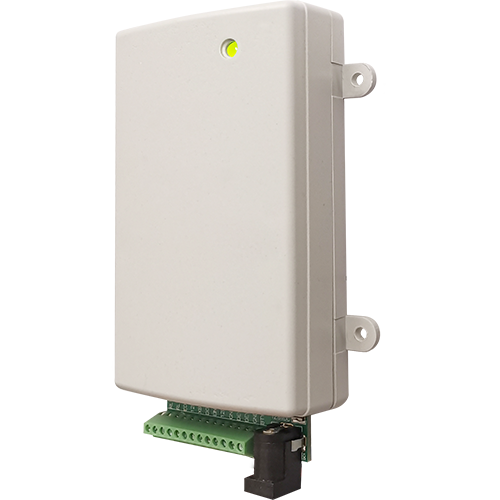

Cloud Interface Unit (CIU)
A module that decrypt/decode commands sent by the IBSSgo cloud access controller and interface to the accessories of a door.

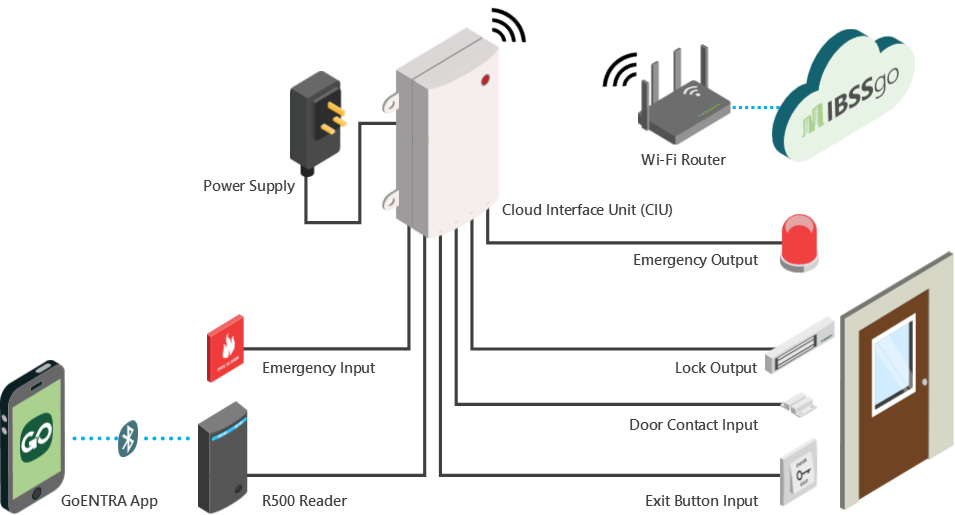

The Cloud Interface Unit (CIU) is a door interface module that decodes and decrypts commands from the IBSSgo cloud access controller and accepts signals to activate I/Os that trigger connected door accessories. All necessary inputs and outputs required to control and monitor an access control door is built-in the CIU.
- Users easily access a door with their mobile device or smart card
- User may also remotely grant or deny access to a door connected to a CIU with their mobile device
- The built-in WIFI-function allows quick reporting to IBSSgo in case of any alarm event
- A low-cost, simple-to-install, yet highly secure and efficient security system that is favorable by individuals and businesses alike
KEY FEATURES
- Supports up to 2x R500 Mobile Readers with RS485
- Supports 1 door operation including door lock, sensor & emergency breakglass
- Built-in battery charger with 15VDC input
KEY FEATURES
Secure Command Decryption
Decodes and decrypts commands from IBSSgo cloud access controller
Comprehensive Door Control System
Activates inputs and outputs to lock/unlock door, sense door open/close, REX button and emergency input (e.g. fire alarm, etc.)
Customizable Alert System
Programmable alarm output
Power Continuity Solution
Single DC power input with battery charger and battery backup upon AC failure
Efficient Alarm Reporting
Built-in WIFI for alarm reporting via a local internet-connected router
Secure Security Made Simple
Highly secure, yet cost effective and easy to install
Effortless Access Control

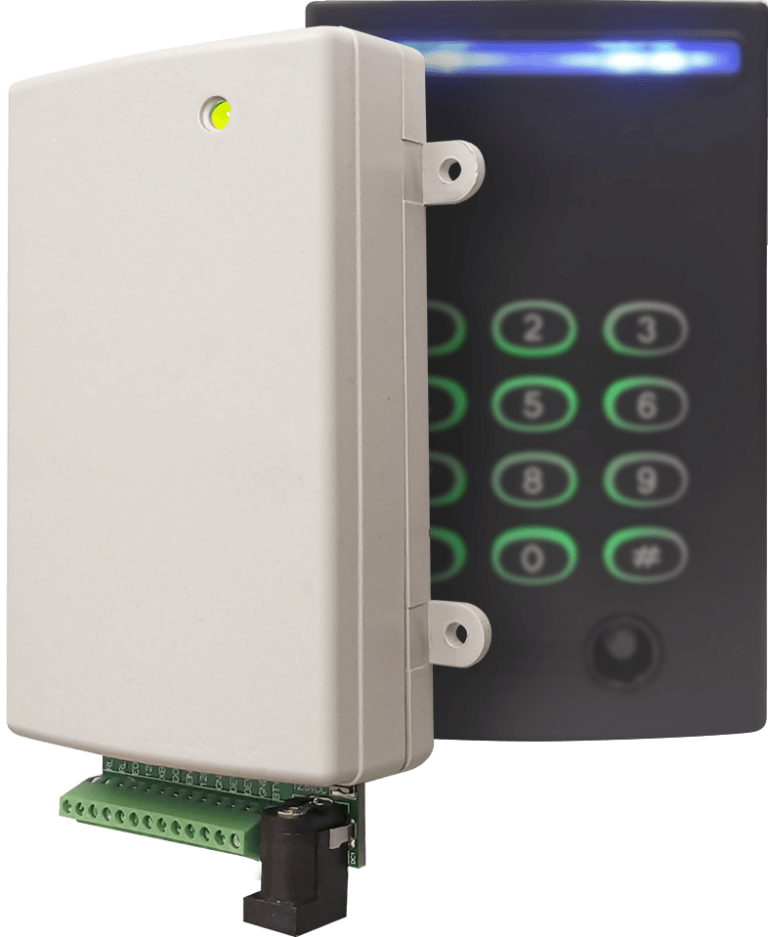

Use with R500 readers to conveniently to unlock doors at any location with a mobile phone
| Specifications | U100 |
| Description | Cloud Interface Unit (CIU) |
| Reader Support | WebENTRA R500 Series Mobile Readers (Up to 2x Readers) |
| Reader Interface | RS485 (ADNET protocol) |
| Input | 1x Door Contact, 1x Exit Button, 1x Emergency |
| Door Control Output | 12V DC 1A or Dry-contact (Configurable) |
| Emergency Output | Open Collector Output (12V DC, 500mA) |
| Alarm Reporting | Wi-Fi interface |
| LED Indicator | 3-Color LED (Red, Amber, Green) |
| Battery | 12V 4AH or 7AH optional |
| Power Adaptor | AC to 15V 2A DC |
| Dimension | 105 x 73 x 25 mm |
| Weight | 220g (excluding AC adapter and battery) |
*Specifications are subject to change without prior notice
| Model | Description |
|---|---|
| U100 | Cloud Interface Unit (CIU) |
| UK Adapter | 15V 2A, UK plug universal AC adapter |
| Euro Adapter | 15V 2A, Euro plug universal AC adapter |
| ABT7AH | 7AH 12V SLA Battery |
