FlexCam ANPR Series

This 2MP (1920 x 1080) IP Camera features IP67 weather resistance, H.265/H.264 compression, and an AI deep learning ANPR algorithm with a capacity for 10,000 number plates. It supports Wiegand and MicroSD cards up to 256GB, making it ideal for vehicle access control in factories, office buildings, and residential properties.

Enquiry
Screenshot_2024-08-13_075249-removebg-preview

Key Features

  • 2MP (1920 x 1080) IP Camera
  • IP67
  • H.265/H.264 compression
  • AI deep learning ANPR algorithm
  • Capacity for 10,000 number plates
  • Support Wiegand
  • MicroSD card support up to 256GB
  • Applications: Vehicle access to factories, office buildings and residential properties
Specifications* t9282

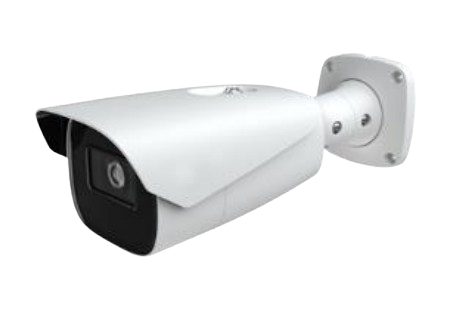

Description FlexCam ANPR 2MP Bullet IP Camera
Image Sensor 1/2.8” CMOS Sensor
Image Settings ROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR
Resolution 2MP
Effective Pixels 1920 (H) x 1080 (V)
Electronic Shutter Speed 1/3sec – 1/100,000sec
Minimum Illumination 0Lux (IR = On), 0.005 lux @F1.6
Recording Mode NVR / NAS / CMS / Web / Edge
Wide Dynamic Range 120dB
VCA Automatic Number Plate Recognition (ANPR), Scene Change, Video Blur/Abnormal Color Detection
ANPR Snapshot Overview and cut out of plate number
Number Plate Database 10,000
ANPR Speed Range 0~50km/h
Lens 2.8-12mm Motorized Zoom Lens
IR Range 50m to 70m
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video Output CVBS (BNC)
Audio Input/Output Audio Input, Audio Output
Serial Output Wiegand
Storage Built-in micro SD card slot, up to 256GB
Frame Rate Main Stream : 1080P / 720P (60Hz: 1~30fps, 50Hz: 1~25fps)
2nd Stream : 720P / D1 / 480×240 / CIF (60Hz: 1~30fps, 50Hz: 1~25fps)
3rd Stream : D1 / 480×240 / CIF (60Hz: 1~30fps, 50Hz: 1~25fps)
Protocol Wiegand,UDP,IPv4,IPv6,DHCP,NTP,RTSP,RTP,RTCP,RTMP,PPPoE,DDNS,SMTP,FTP,SNMP,802.1x,UPnP,HTTP,HTTPs,HTTP POST,QoS
Interoperability ONVIF
Power DC12V / PoE (IEEE 802.3af), <11W
Weight 1.04kg
Dimensions 278.3mm(L) × 100.2mm(W) x 88.7mm(H)
Operating Conditions -30°C ~ +60°C, Humidity 95% RH max

*Specifications are subject to change without prior notice

Datasheet: https://www.asis-technologies.com/datasheets/video-surveillance-solutions-datasheets/

Model No. Description
t9282 FlexCam ANPR 2MP Bullet IP Camera
