| Specifications* |
t2255 |
t2251 |
| Description |

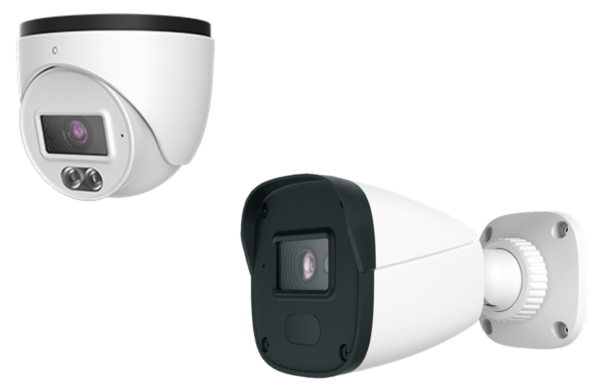

FlexCam Eco 2MP Fixed Dome IP Camera |

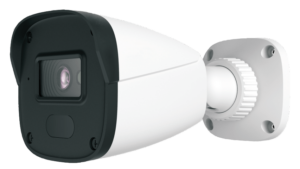

FlexCam Eco 2MP Fixed Bullet IP Camera |
| Image Sensor |
1/3″ CMOS Sensor |
| Image Settings |
ROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR |
| Resolution |
2MP |
| Effective Pixels |
1920 (H) x 1080 (V) |
| Electronic Shutter Speed |
1/3sec – 1/100,000sec |
| Minimum Illumination |
0Lux (IR = On), 0.02 lux @F2.2 |
0Lux (IR = On), 0.0462 lux @F2.2 |
| Recording Mode |
NVR / NAS / CMS / Web |
| Wide Dynamic Range |
Digital WDR |
| VCA |
Region Intrusion, Line Crossing, Smart Motion (Filter by
different types of target) Detection |
Region Intrusion, Video Blur, Scene Change, Abnormal
Color, Line Crossing Detection |
| Lens |
3.6mm Fixed Lens (Option for 2.8mm Lens: t2245) |
3.6mm Fixed Lens (Option for 2.8mm Lens: t2241) |
| IR Range |
10m to 20m |
| White Light Range |
10m to 20m |
No |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
H.265+ / H.265 / H.264+ / H.264 |
| Audio Input |
Built-in Mic |
| Storage |
No |
| Frame Rate |
Main Stream : 60Hz : 1080P / 720P ( 1 ~ 30fps ), 50 HZ : 1080P / 720P ( 1 ~ 25fps )
Sub Stream : 60Hz : D1 / VGA / 480×240 / CIF ( 1 ~ 30fps ), 50Hz : D1 / VGA / 480×240 / CIF ( 1 ~ 25 fps ) |
Main Stream : 60Hz : 1080P / 720P ( 1 ~ 30fps ), 50 HZ : 1080P / 720P ( 1 ~ 25fps )
Sub Stream : 60Hz : D1 / VGA / CIF ( 1 ~ 30fps ), 50Hz : D1 / VGA / CIF ( 1 ~ 25 fps ) |
| Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, 802.1x, HTTP |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interoperability |
ONVIF |
| Power |
DC12V / PoE (IEEE 802.3af), <5W |
DC12V / PoE (IEEE 802.3af), <4W |
| Weight |
0.42 kg |
0.24 kg |
| Dimensions |
Ø 94.6mm × 82.8mm (H) |
162.1mm (L) x 74.8mm (W) x 73.8mm (H) |
| Operating Conditions |
-30°C ~ +65°C, Humidity 95% RH max. |
-20°C ~ +55°C, Humidity 95% RH max. |
