| Specifications* |
t5486 |
t5455 |
t5482 |
t5452 |
| Description |

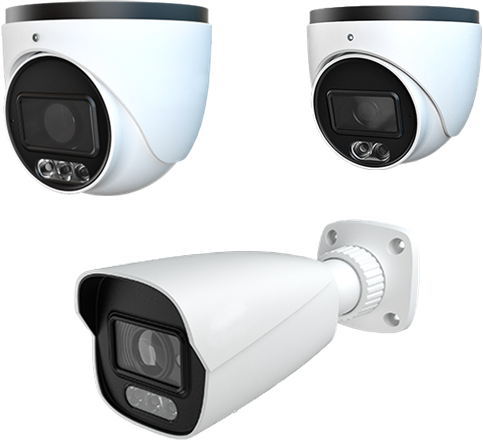

FlexCam Plus 4MP AF Dome IP Camera |
FlexCam Plus 4MP Fixed Dome IP Camera |

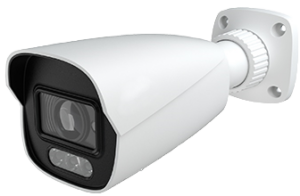

FlexCam Plus 4MP AF Bullet IP Camera |
FlexCam Plus 4MP Fixed Bullet IP Camera |
| Image Sensor |
1/3” CMOS Sensor |
| Image Settings |
ROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR |
| Resolution |
4MP |
| Effective Pixels |
2560 (H) x 1440 (V) |
| Electronic Shutter Speed |
1/1sec – 1/100,000sec |
| Minimum Illumination |
0Lux (IR = On), 0.005 lux @F1.6 |
| Recording Mode |
NVR / NAS / CMS / Web / Edge |
| Wide Dynamic Range |
120dB |
| VCA |
Region Intrusion (Human/Vehicle/Non-vehicle), Video Blur, Scene Change, Abnormal Color, Line Crossing, Abandon/Missing Object Detection |
| Lens |
2.8-12mm AF Motorized Zoom Lens |
3.6mm Fixed Lens (Option for 2.8mm Lens: t5445) |
2.8-12mm AF Motorized Zoom Lens |
3.6mm Fixed Lens (Option for 2.8mm Lens: t5442) |
| IR Range |
30m to 50m |
20m to 30m |
30m to 50m |
| White Light Range |
30m to 40m |
20m to 30m |
30m to 40m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Audio Input |
Audio Input, Built-in Mic |
| Storage |
Built-in micro SD card slot, up to 256GB |
| Frame Rate |
Main Stream : 60Hz : 4MP / 3MP / 1080P / 720P (1~30fps), 50Hz : 4MP / 3MP / 1080P / 720P (1~25fps)
2nd Stream : 60Hz : 720P / D1 / VGA / CIF (1~30fps), 50Hz : 720P / D1 / VGA / CIF (1~25fps)
3rd Stream : 60Hz : D1 / 480×240 / CIF (1~30fps), 50Hz : D1 / 480×240 / CIF (1~25fps) |
| Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, HTTP POST, QoS |
| Interoperability |
ONVIF |
| Power |
DC12V / PoE (IEEE 802.3af), <9W |
DC12V / PoE (IEEE 802.3af), <6W |
DC12V / PoE (IEEE 802.3af), <8.5W |
| Weight |
0.66 kg |
0.45 kg |
0.68 kg |
| Dimensions |
Ø 111.6mm × 99.6mm (H) |
Ø 94.6mm × 82.8mm (H) |
217.8mm (L) × 80.5mm (W) x 80.3mm (H) |
| Operating Conditions |
-40°C ~ +60°C, Humidity 95% RH max. |
