| Specifications* |
t8486 |
t8482 |
t8457 |
| Description |

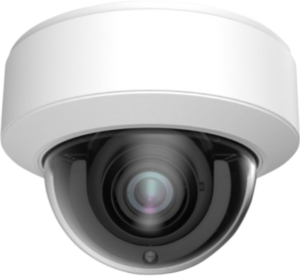

FlexCam Max 4MP AF Dome IP Camera |

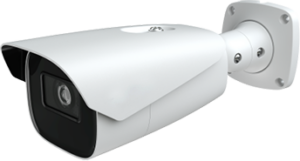

FlexCam Max 4MP AF Bullet IP Camera |

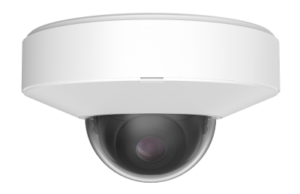

FlexCam Max 4MP Fixed Dome IP Camera |
| Image Sensor |
1/3” CMOS Sensor |
| Image Settings |
ROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR |
| Resolution |
4MP |
| Effective Pixels |
2592 (H) x 1520 (V) |
| Electronic Shutter Speed |
1/2sec – 1/100,000sec |
| Minimum Illumination |
0Lux (IR = On), 0.005 lux @F1.6 |
| Recording Mode |
NVR / NAS / CMS / Web / Edge |
| Wide Dynamic Range |
120dB |
| VCA |
Line Crossing, Region Intrusion/Entrance/Exiting, Loitering, Illegal Parking, Abandoned/Missing Object, Scene Change,
Video Blur/Abnormal Color and Audio Exception Detection
Target Counting by Line/Area, Heat Map, Face Detection and Face Capture. |
| Lens |
2.8-12mm AF Motorized Zoom Lens |
3.6mm Fixed Lens |
| IR Range |
30m to 50m |
40m to 60m |
10m to 20m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Output |
CVBS (BNC) |
No |
| Audio Input/Output |
Audio Input, Audio Output, Built-in Mic |
Audio Input, Audio Output |
Audio Input, Built-in Mic |
| Storage |
Built-in micro SD card slot, up to 256GB |
| Frame Rate |
Main Stream : 4MP / 2K / 3MP / 1080P / 720P (60Hz: 1~30fps, 50Hz: 1~25fps), HFR Mode: 1080P / 720P (60Hz: 1~60fps, 50Hz: 1~50fps)
2nd Stream : 720P / D1 / VGA / CIF (60Hz: 1~30fps, 50Hz: 1~25fps)
3rd Stream : D1 / 480×240 / CIF (60Hz: 1~30fps, 50Hz: 1~25fps) |
| Protocol |
UDP,IPv4,IPv6,DHCP,NTP,RTSP,RTP,RTCP,RTMP,PPPoE,DDNS,SMTP,FTP,SNMP,802.1x,UPnP,HTTP,HTTPs,HTTP POST,QoS |
| Interoperability |
ONVIF (Profile S, G, T, M) |
| Power |
DC12V / PoE (IEEE 802.3af), <9W |
DC12V / PoE (IEEE 802.3af), <6W |
| Weight |
0.93 kg |
1.04 kg |
0.38 kg |
| Dimensions |
Ø 141.0mm × 100.2mm (H) |
278.3mm (L) × 100.2mm (W) x 88.7mm (H) |
Ø 110.0mm × 59.8mm (H) |
| Operating Conditions |
-30°C ~ +60°C, Humidity 95% RH max. |
