| Specifications* |
t5276 |
t5255 |
t5272 |
t5252 |
| Description |

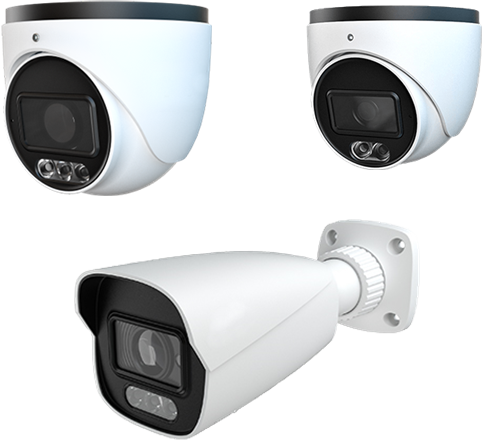

FlexCam Plus 2MP VF Dome IP Camera |
FlexCam Plus 2MP Fixed Dome IP Camera |

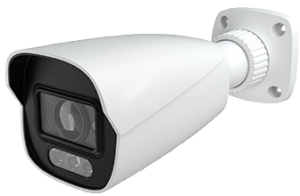

FlexCam Plus 2MP VF Bullet IP Camera |
FlexCam Plus 2MP Fixed Bullet IP Camera |
| Image Sensor |
1/2.8” CMOS Sensor |
| Image Settings |
ROI / Saturation / Brightness / Hue / Contrast / Wide Dynamic / Image Flip / Image Mirror / Sharpness / NR |
| Resolution |
2MP |
| Effective Pixels |
1920 (H) x 1080 (V) |
| Electronic Shutter Speed |
1/3sec – 1/100,000sec |
| Minimum Illumination |
0Lux (IR = On), 0.008 lux @F1.6 |
| Recording Mode |
NVR / NAS / CMS / Web / Edge |
| Wide Dynamic Range |
120dB |
| VCA |
Region Intrusion (Human/Vehicle/Non-vehicle), Video Blur, Scene Change, Abnormal Color, Line Crossing, Abandon/Missing Object Detection |
| Lens |
2.8-12mm Varifocal Lens |
3.6mm Fixed Lens (Option
for 2.8mm Lens: t5245) |
2.8-12mm Varifocal Lens |
3.6mm Fixed Lens (Option
for 2.8mm Lens: t5242) |
| IR Range |
30m to 40m |
20m to 30m |
30m to 50m |
| White Light Range |
30m to 40m |
20m to 30m |
30m to 40m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Audio Input |
Audio Input, Built-in Mic |
| Storage |
Built-in micro SD card slot, up to 256GB |
| Frame Rate |
Main Stream : 60Hz : 1080P / 720P ( 1 ~ 30fps ), 50 HZ : 1080P / 720P ( 1 ~ 25fps )
2nd Stream : 60Hz : D1 / VGA / CIF ( 1 ~ 30fps ), 50Hz : D1 / VGA / CIF ( 1 ~ 25 fps )
3rd Stream : 60Hz : D1 / 480×240 / CIF ( 1 ~ 30fps ), 50Hz : D1 / 480×240 / CIF ( 1 ~ 25 fps ) |
| Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, HTTP POST, QoS |
| Interoperability |
ONVIF |
| Power |
DC12V / PoE (IEEE 802.3af), <8W |
| Weight |
0.66 kg |
0.45 kg |
0.68 kg |
| Dimensions |
Ø 111.6mm × 99.6mm (H) |
Ø 94.6mm × 82.8mm (H) |
217.8mm (L) × 80.5mm (W) x 80.3mm (H) |
| Operating Conditions |
-40°C ~ +60°C, Humidity 95% RH max. |
